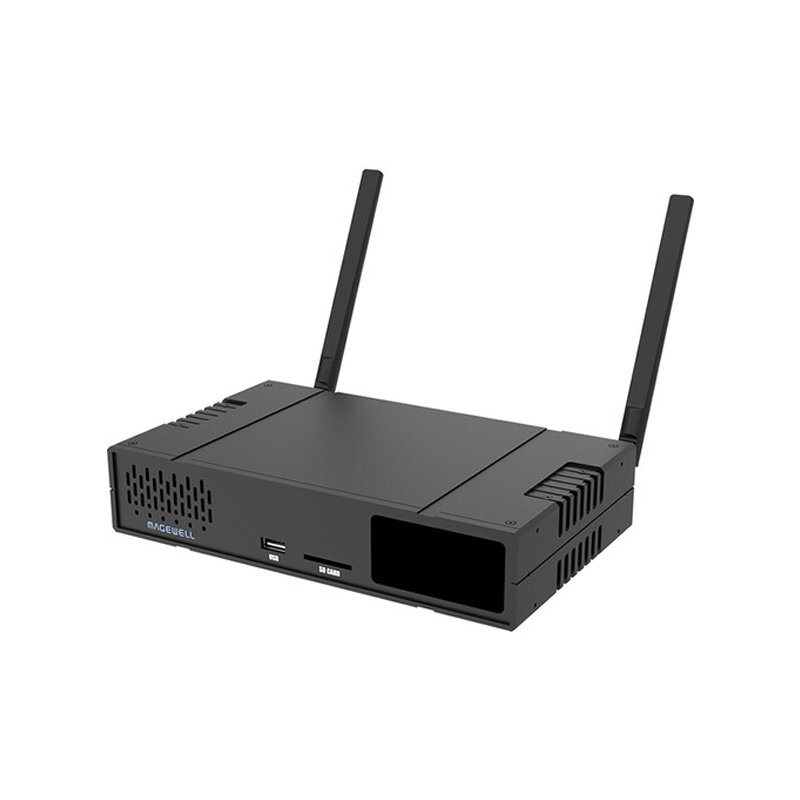

Magewell Ultra Encode AIO HDMI and SDI 4K Streaming / Encoding Interface
Mixes video from the HDMI and SDI inputs
(picture-in-picture or side-by-side) into a combined output
Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session
High-efficiency, low-bandwidth NDI®|HX 3 supported
Supports streaming and recording schedule
Rack-mountable form factor
Ultra Encode AIO live media encoders take the capabilities of our original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.
The single-channel Ultra Encode AIO can encode one live input source – either HDMI or SDI – or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.
Flexible Formats and Protocols
Ultra Encode AIO supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.
Powerful Encoding & Streaming Capabilities
Video can be encoded at resolutions up to 4096x2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device’s 3G-SDI input. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.
Versatile Recording and Streaming
Ultra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).
New NDI|HX 3 Support
For IP production workflows and AV-over-IP signal distribution architectures, Ultra Encode AIO supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform. Ultra Encode AIO also supports the earlier NDI®|HX 2 for broad compatibility.
Input Features
HDMI max input signal: 4096x2160 60fps 4:2:0; 4096x2160 30fps 4:4:4/4:2:2
SDI max input signal: 2048x1080 60fps 4:2:2
Input 16-Channel SDI embedded audio
Input 8-Channel, 24-bit HDMI embedded audio
Input Audio from 3.5mm LINE IN
Encoding Features
Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps)
Support for H.264/HEVC video encoding
Encoding 8-channel AAC
Streaming Features
Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols
Support for streaming schedule for each destination
Recording Features
Record to an SD card or external USB storage, MP4 or MOV format supported
Support for loop recording when recording to SD card
Share recorded files with NFS/CIFS/SMB
Support for recording schedule
Input Specs
HDMI supported input & loop-through signals include:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
SDI supported input & loop-through signals include:
2048x1080 60fps 4:2:2
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
Custom EDID
8/10/12-bit color
Input & loopthrough 16-Channel SDI embedded audio
Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
Dual stream encoding: main stream and sub stream
Max bitrate: 32Mbps
HDMI supported resolutions include:
4096x2160p/3840x2160p/2560x1440p30
1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p25
720x480p30
SDI supported resolutions include:
1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p25
720x480p30
H.264/H.265 (HEVC) SEI message supports system timecode or RP–188 timecode extracted from input
H.264/H.265 (HEVC) SEI message supports native CEA–608/608 over 708 captions
Converting video aspect ratio of dual streams
Encoding 8-channel AAC
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT
Encoding videos after de-interlacing
Encoding interlaced input signal as main and sub streams in the format of interlaced H.265 (HEVC)
Streaming Features
Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols, containing 1 session of HLS, RTSP, NDI®|HX2, or NDI®|HX 3 (if included)
Specify main stream or sub stream for each streaming session
Support for streaming scheduler for each destination
Recording Features
Support for normal recording and loop recording
Record to external SD card and external USB storage
Record the main or sub stream
Download recorded files via webUI
Support for recording schedule
Video recordings in MP4 or MOV format
Share recorded files with NFS/CIFS/SMB
