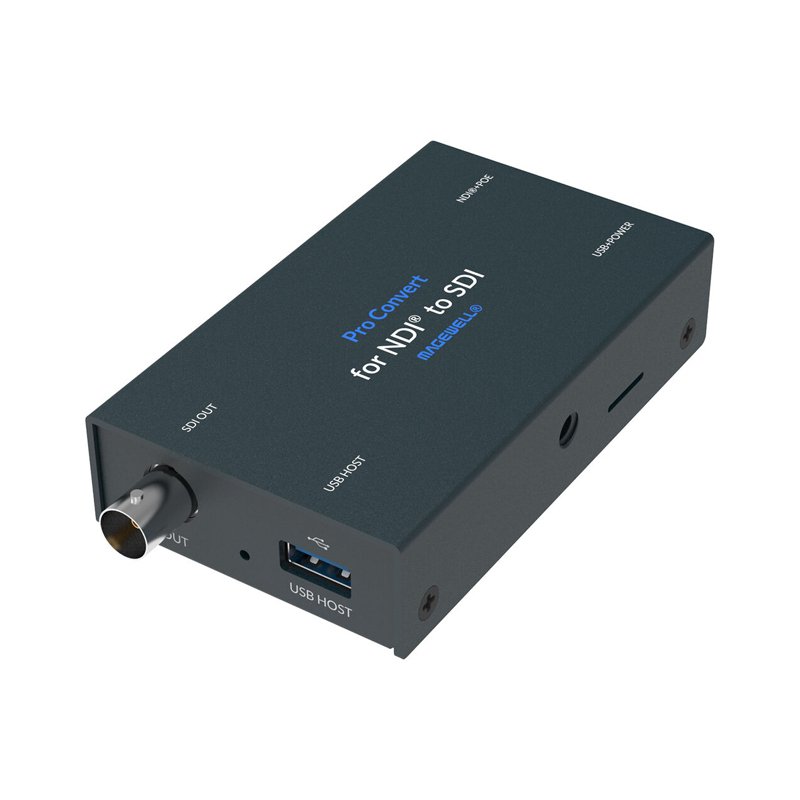

Magewell Pro Convert NDI to SDI Decoder, 64150

Pro Convert for NDI to SDI Specifications

Supported Software

• OBS

• XSplit

• vMix

• VidBlasterX

• Wirecast

• streamstar SW

• mimoLive

• Any other NewTek NDI-enabled encoding or streaming software

Output interfaces BNC: SD/HD/3G SDI

USB interface 2.0 Type B

5V/2.1A power supply
USB RNDIS/ECM - USB 3.0 Type A

• connecting peripherals (keyboard and/or mouse)to set up device

Network interface

• 10/100/1000 Mbps Ethernet

• Support IEEE 802.3af PoE

On-board Control Buttons

• MENU: press to display the menu, or cycle through the options

• SELECT: press to display the menu, enter current option, or confirm the selection

SDI Output Feature

• Max output: 1920x1080p60

• Support 48KHz 16-bit 8-channel audio output

Decoding Features

• Decoding 1080p60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols

• Support NDI 4.5

• Support H.264/H.265 video decoders

• Support AAC/MP3 audio decoders

Others

• LED Indicators

• 2-year Warranty

• 1/4-20 Mounting Hole

UPC: 0814395021348
