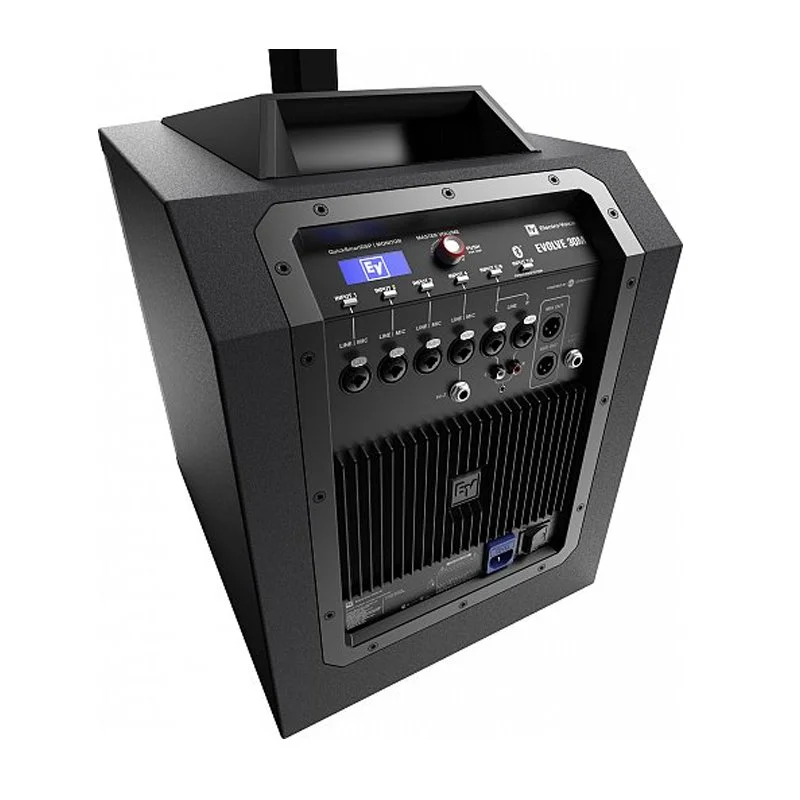

Electro Voice Evolve 30M - Portable Column System

Specifications

• Frequency response (-3 dB): 51 Hz to 20 KHz

• Frequency range (-10 dB): 45 Hz to 20 KHz

• Maximum SPL: 123 dB

• Coverage (H x V): 120° x 40°

• Amplifier rating: 1000 W

• LF channel rating: 500 W

• HF channel rating: 500 W

• Crossover frequency: 200 Hz

• Connectors: 4x XLR/TRS Combo Jack Line / Mic Input

1x 1/4" TRS HI-Z input

2x XLR/TRS Combo Jack for Stereo Line Input

1x Stereo RCA Input

1x 3.5 mm Stereo Input

1x Wireless Stereo Bluetooth® Audio Input

1x 1/4" Foot Switch Input

1x XLR MIX OUT Output

1x XLR AUX OUT Output

• Enclosure

Sub: 15 mm plywood

Column: Composite

Pole: Aluminum

Grille: Steel with black or white powder coat

• Color: Black or white

• Dimensions (HxWxD): mm (in) Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)

Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)

Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)

• Net weight Sub: 34.9 lb (15.8 kg)

Column: 6.0 lb (2.7 kg)

Pole (2 pcs): 3.1 lb (1.4 kg)

Bag for column and pole: 1.9 (0.85 kg)

• Shipping weight 53.4 lb (24.2 kg)

• Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A

1: Half-space measurement using live DSP preset.

2: Maximum SPL is measured at 1 m using broadband pink noise at maximum output. 3Current rating is 1/8 power.
